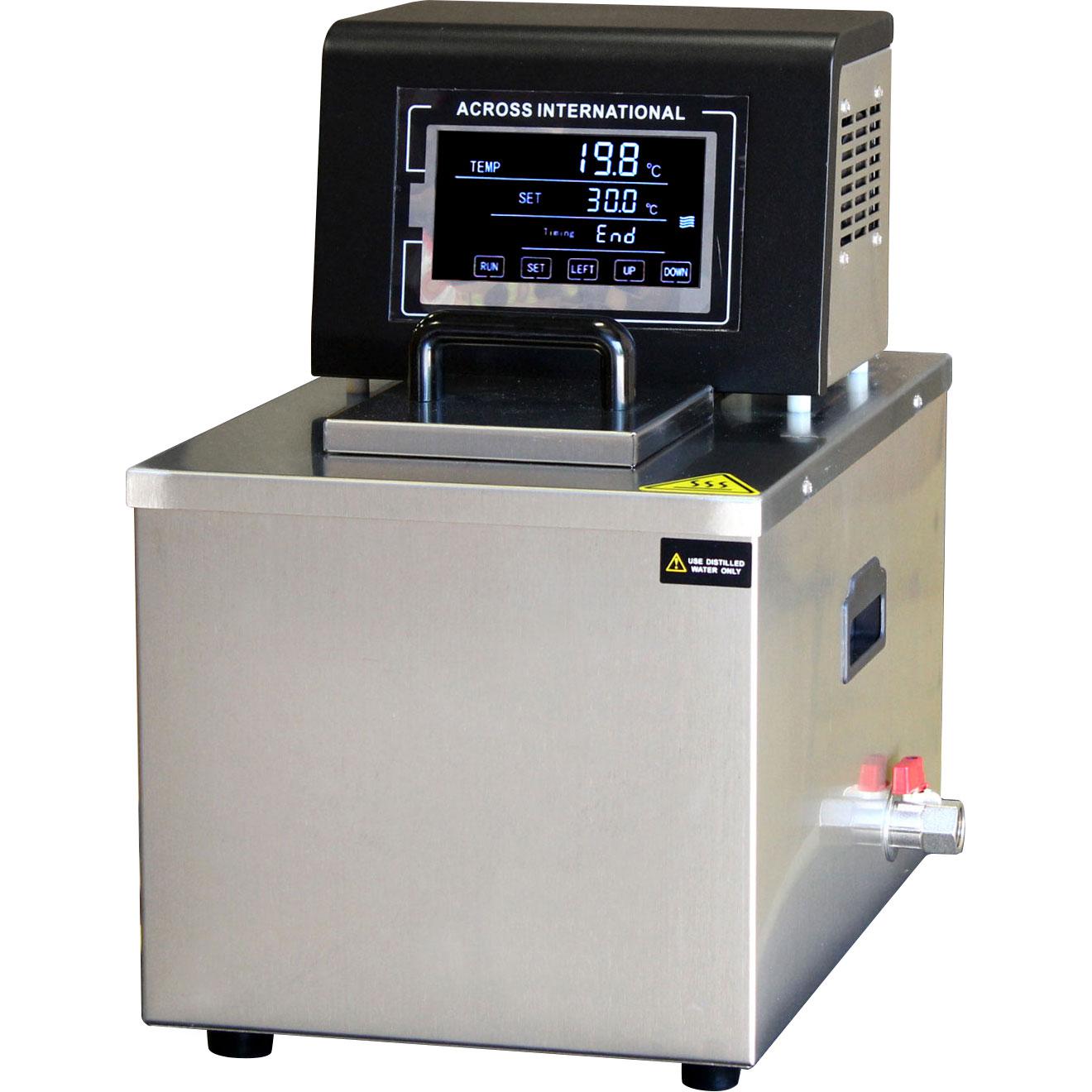

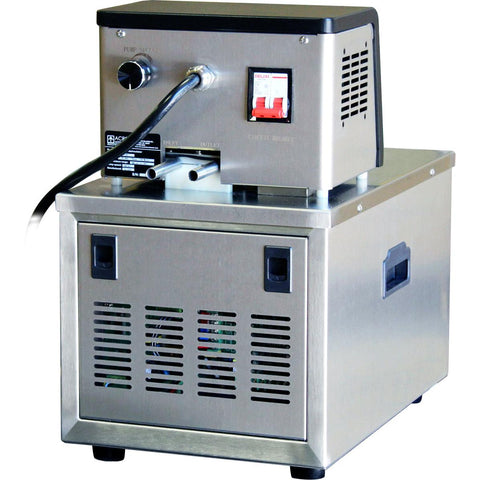

Ai Compact Heated Circulators, to 100°C, Stainless Steel
$1,490
$1,372
and up
| SKU | Description | Filling Volume | Temperature Range | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
| H100-7SST.220 | Ai Compact Heated Circulator, Stainless Steel | 7 L | Ambient to 100°C (No load) | 220V, 60Hz, 1-PH, 2,600W, UL/CSA Certified | 1 Each |
|
|
| H100-15SST.220 | Ai Compact Heated Circulator, Stainless Steel | 15 L | Ambient to 100 °C (No load) | 220V, 60Hz, 1-PH, 2,600W, UL/CSA Certified | 1 Each |
|
Description
The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.
Features
- Powerful 2,500 watts heater
- All stainless steel finish
- Adjustable pumping speed up to 20 liters per minute
- 2nd generation 7" TFT touch screen controller
- ANSI standard all stainless steel reservoir
- All steel construction for durability
- Small footprint saves valuable lab space
- Connection tubing included
- Recommended for 2L to 10L distillation systems
- ETL tested to UL and CSA standards
Specifications
| SKU | H100-7SST.220 | H100-15SST.220 |
|---|---|---|
| Model | H100-7sst | H100-15sst |
| Temperature Range | Ambient to 100°C (No load) | Ambient to 100 °C (No load) |
| Electrical | 220V, 60Hz, 1-PH, 2,600W, UL/CSA Certified | 220V, 60Hz, 1-PH, 2,600W, UL/CSA Certified |
| Heating Capacity | 2,500 watts | 2,500 watts |
| Pumping Speed | 20 L/min, adjustable | 20 L/min, adjustable |
| Maximum Head | 16 feet or 5 meters | 16 feet or 5 meters |

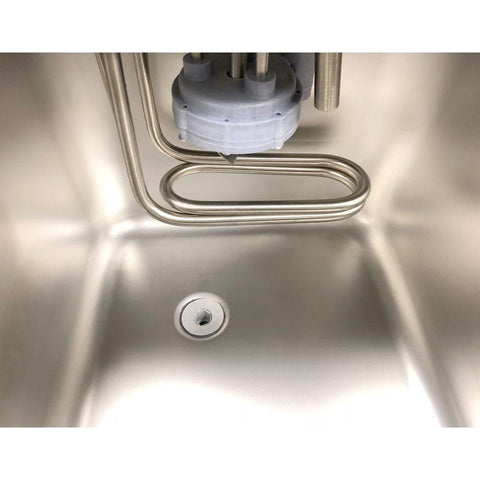

| Reservoir | 304 stainless steel | 304 stainless steel |
| Reservoir Size | 9.5 x 12 x 7.5" (WxDxH) | 9.5 x 12 x 7.5" (WxDxH) |
| Filling Volume | 7 L | 15 L |
| Connection | 3/8" hose barb x 2 | 3/8" hose barb x 2 |
| Controller | Digital microprocessor PID controlled | Digital microprocessor PID controlled |
| Display | 7" touch screen | 7" touch screen |
| Temperature Accuracy | +/- 2 °C | +/- 2 °C |
| Ambient Environmental Temp | -15°C to 25°C, at < 66% humidity | -15°C to 25°C, at < 66% humidity |
| Dimensions | 12 x 17 x 18" | 12.5 x 17 x 19.25" |
| Weight | 30 lbs | 30 lbs |
| Shipping Dimensions | 17 x 20 x 22" | 17 x 20 x 22" |
| Shipping Weight | 36 lbs | 36 lbs |
| Safety Features | Short circuit & ground protection, Over-current protection, Over-temperature protection, Upper/lower temperature alarm protection | Short circuit & ground protection, Over-current protection, Over-temperature protection, Upper/lower temperature alarm protection |
| Warranty | One year | One year |
| Compliance | UL 61010-1 :2012 Ed.3+R:29Apr2016, CSA C22.2#61010-1 :2012 Ed.3 | UL 61010-1 :2012 Ed.3+R:29Apr2016, CSA C22.2#61010-1 :2012 Ed.3 |
