Ai SolventVap 10L Rotary Evaporator, Motorized Lift

from $6,490.00 $5,977.00

SKU DESCRIPTION CAPACITY ELECTRICAL QUANTITY PRICE ADD TO CART
SE26 Ai SolventVap Rotary Evaporator, Motorized Lift 10 L 220V 50/60Hz single phase, 17.3A, 3800 watt 1 Each
$6,490
$5,977
SE26-UL Ai SolventVap Rotary Evaporator, Motorized Lift, UL/CSA Certified 10 L 220V 50/60Hz single phase, 17.3A, 3800 watt 1 Each
$8,490
$7,818.98

The Ai SolventVap 10L series rotary evaporators can be ETL tested to UL/CSA standards, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. SolventVap comes with all PTFE valves for solvent-resistant operations. We also lowered the height of assembled unit, for easy installation and ease of use and storage. Also come with them are vertical glassware and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.

Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 130 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.

Digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.

Standard Glassware Set includes 2.6 gallon (10 liters) round-bottomed evaporating flask, 1.3 gallon (5 liters) round-bottomed receiving flask, and vertical condenser. Rotary evaporators with vertical glass condenser are great for distillation of solvents with higher boiling points.

Features

  • Solvent-resistant PTFE and FKM gaskets, ensuring long time operation.
  • Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
  • Downward-condensing vacuum connection design ensures safe vacuum operation.
  • Motorized water bath lifting for precise control.
  • Easy, straight-forward visual operation with digital speed and temperature display.
  • PID temperature controller ensures accurate temperature control is maintained.
  • One year warranty on rotary evaporator except for glassware and all sealing gaskets.
  • UL 61010-1 and CSA C22.2 certified (optional)

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications
Glass Material High borosilicate glass 3.3
Evaporating Flask Capacity 10 Liters (2.6 gallon or 0.35 cu ft)
Maximum Load Not to exceed 60% of the flask's capacity
Sealing Flange 4.9" diameter
Rotation Speed 10 to 130 rpm
Evaporating Speed 0.75 gallon/hour (water), 1.5 gallon/hour (alcohol)
Receiving Flask 1.3 gallon (5 liters or 0.18 cu ft)
Condenser Glassware Main + auxiliary triple-circulating cold traps, vertical
Chilling Fluid Connection 3/8" hose barb x 4 (2 on main + 2 on auxiliary)
Condensing Surface, Main Condenser 3,900 cm2 or 4.2 sq ft
Condensing Surface, Auxiliary condenser 2,530 cm2 or 2.7 sq ft
Working Environment 5 to 95°F
Water Bath Temperature Range ambient to 99°C (210°F)
Temperature Controller digital
Dimensions 12.5" diameter x 8.7" depth x 11" height
Material stainless steel
Media distilled water only
Max. Water Level not to exceed 1" from the top rim of the bath
Number of Heaters two
Drain Port one
Lifting Motorized
Maximum Lifting Distance 4 inches
Vacuum Ultimate Vacuum Level < 3 torrs
Sealing PTFE + FKM gaskets
Connection 3/8" hose barb x 1 on main condenser
Safety Dry-run, over-temp shut-off, built-in circuit breakers
Unit Dimensions (WxDxH) 36 x 22 x 67"
Shipping Dimensions (WxDxH) 39 x 22 x 44" (evaporator), 30 x 25 x 28" (glassware)
Shipping Weight 200 Lb (evaporator), 100 Lb (glassware)
Electrical Requirements 220V 50/60Hz single phase, 17.3A, 3800 watt (rotation motor: 300 watts)
Compliance UL/CSA (optional)

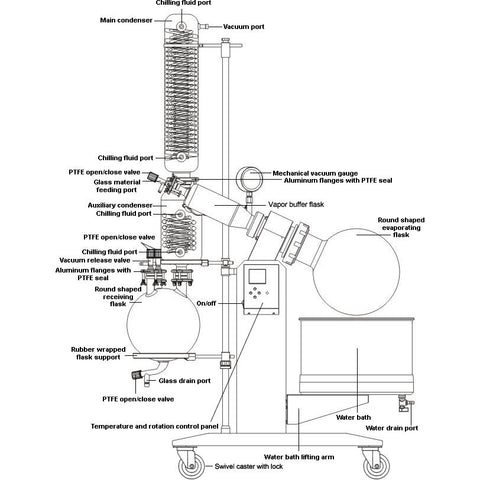

Package Includes
Description Quantity
Ai SolventVap 10 Liter (2.6-gallon) rotary evaporator and water bath 1 Each
Vapor filtering bottle 1 Each
Vertical main (1) and auxiliary condensers (1), glass 2 Each
10L round shaped, big neck evaporating flask, glass 1 Each
5L round shaped receiving flask 1 Each
Three-way tee vapor buffering flask, glass 1 Each
Glass vapor duct with seal (pre-installed) 1 Each
PTFE vacuum sealing kit (pre-installed) 2 Each
Receiving flask glass vacuum port with PTFE open/close valve, glass 2 Each
Glass material feeding tube with PTFE open/close valve and PTFE extension feeding hose 1 Each
Stainless steel pole and mechanical vacuum gauge 2 Each
Rubber-wrapped condenser support and bracket 2 Each
Rubber-wrapped receiving flask support 1 Each
Flask quick clamp 6 Each
PTFE centering ring for sealing flanges 6 Each
GL18 connector 5 Each
Evaporating flask cap spanner, allen key & screws 1 Each
NEMA L6-30 30A 250V power plug Installed
