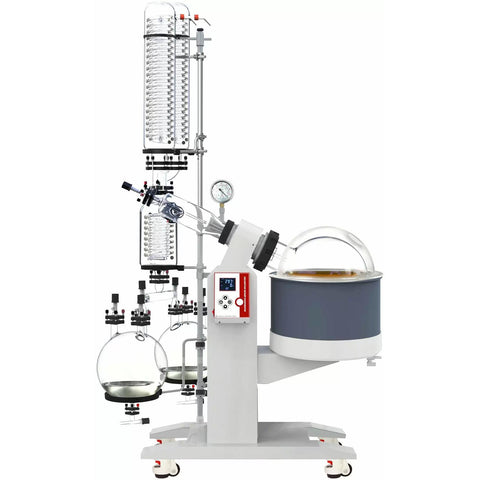

Ai SolventVap 20L Rotary Evaporator, Motorized Lift
SKU Description Capacity Electrical Quantity Price Add to Cart
SE53 Ai SolventVap Rotary Evaporator, Motorized Lift 20 L 220V 50/60Hz single phase, 20A, 4300 watt, UL/CSA Certified 1 Each
$9,500
$8,750
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
SE53-CE Ai SolventVap Rotary Evaporator, Motorized Lift 20 L 220V 50/60Hz single phase, 20A, 4300 watt, UL/CSA/CE Certified 1 Each
$12,500
$11,513
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

The Ai SolventVap series 20L rotary evaporators is now ETL tested to UL/CSA standard. This certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the new plexglass bath cover. Specially designed for Ai 20L SolventVap rotary evaporators, this beneficial cover securely rests on top of the water bath and ensures the best possible temperature uniformity.

SolventVap rotary evaporators come with all PTFE valves for solvent-resistant operations. We also lowered the height of assembled unit, for easy installation and ease of use and storage. Also come with them are vertical glassware and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.

Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 130 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.

Digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.

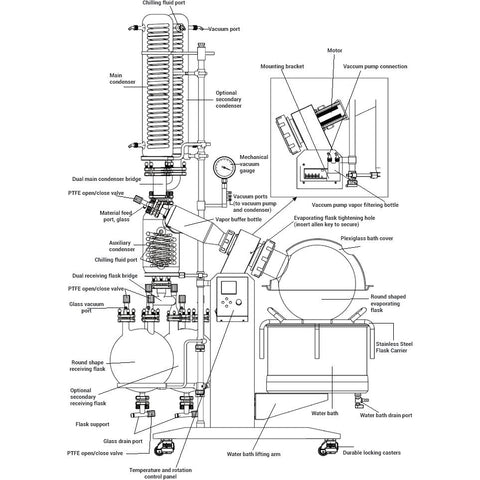

Standard Glassware Set includes 5.28 gallon (20 liters) round-bottomed evaporating flask, 2.64 gallon (10 liters) round-bottomed receiving flask, and vertical condenser. Rotary evaporators with vertical glass condenser are great for distillation of solvents with higher boiling points.

Features

  • UL 61010-1 and CSA C22.2 certified, standard
  • Dual condenser and dual receiving flask

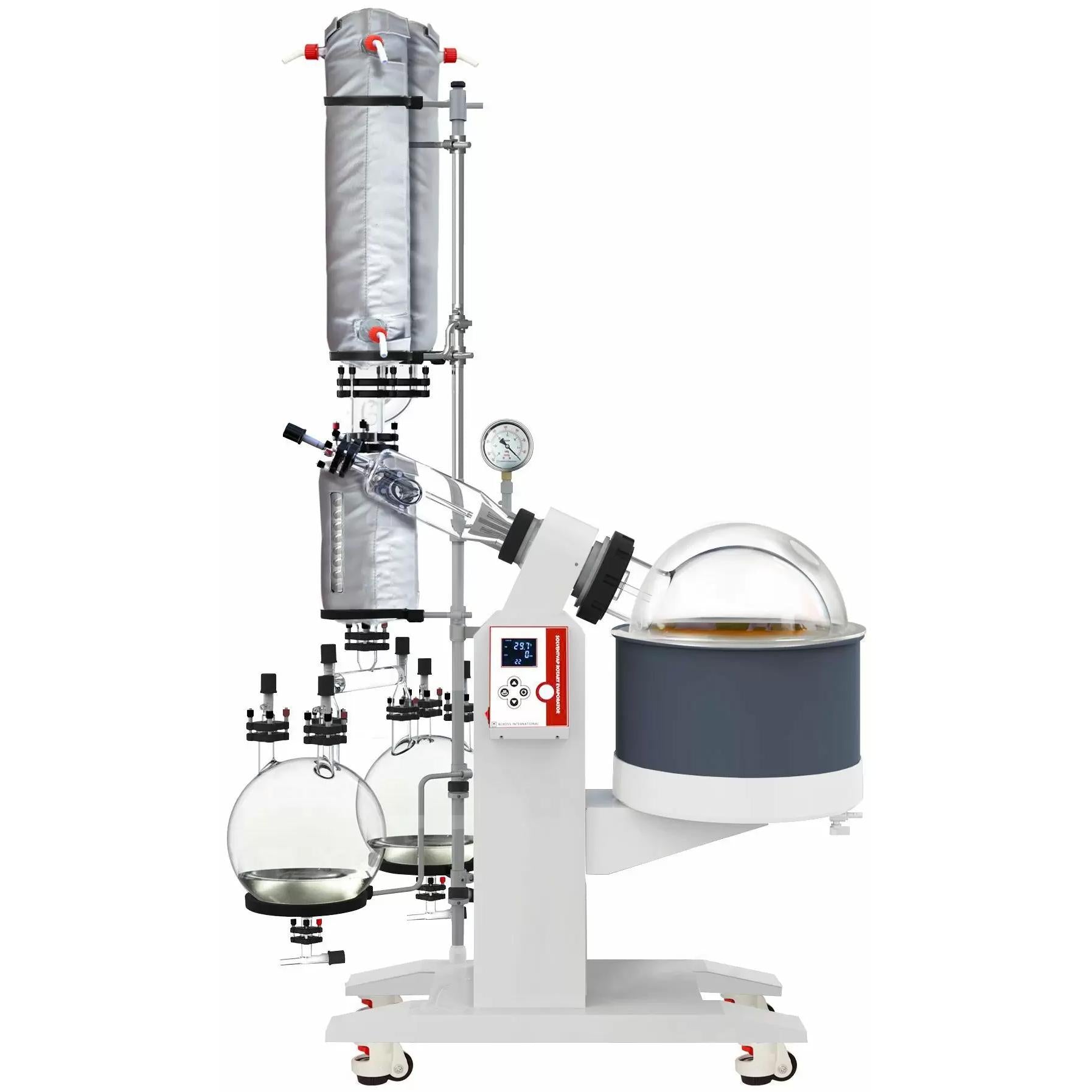

  • Condenser insulation sleeves increase safety by protecting lab personnel from injury, in case of shattered glass caused by thermal shock. They also protect glassware and increase cooling efficiency.
  • Water bath cover enhances safety by protecting evaporating flask and the material inside; it gives you uniform temperature inside evaporation flask as well as energy saving by reducing heat loss. It also creates a better lab environment by preventing heat and humidity from escaping.
  • Come standard with a stainless steel 20L evaporating flask carrier with silicone cushions, custom made for Ai 20L SolventVap series rotary evaporators. This carrier can be placed on top of our 20L SolventVap's water bath for easy loading and unloading. It can also be used as a flask stand.
  • Solvent-resistant PTFE and FKM gaskets, ensuring long time operation.
  • Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
  • Downward-condensing vacuum connection design ensures safe vacuum operation.
  • Motorized water bath lifting for precise control.
  • Easy, straight-forward visual operation with digital speed and temperature display.
  • PID temperature controller ensures accurate temperature control is maintained.
  • One year warranty on rotary evaporator except for glassware and all sealing gaskets.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications
Glass Material High borosilicate glass 3.3
Evaporating Flask Capacity 5.28 gallon (20 liters or 0.7 cu ft)
Maximum Load Not to exceed 60% of the flask's capacity
Sealing Flange 4.9" diameter
Rotation Speed 10 to 130 rpm
Evaporating Speed 1 gallon/hour (water), 2 gallon/hour (alcohol)
Receiving Flask 2.64 gallon (10 liters or 0.35 cu ft)
Condenser Glassware Main + auxiliary triple-circulating cold traps, vertical
Chilling Fluid Connection 3/8" hose barb x 4 (2 on main + 2 on auxiliary)
Condensing Surface, Main Condenser 9,480 cm2 or 10.2 sq ft
Condensing Surface, Auxiliary condenser 3,580 cm2 or 3.9 sq ft
Working Environment 5 to 95°F
Water Bath Temperature Range ambient to 99°C (210°F)
Temperature Controller digital
Dimensions 17.5" diameter x 9.8" depth x 12" height
Material stainless steel
Media distilled water only
Max. Water Level not to exceed 1" from the top rim of the bath
Number of Heaters two
Drain Port one
Lifting Motorized
Maximum Lifting Distance 7.5 inches
Vacuum Ultimate Vacuum Level < 3 torrs
Sealing PTFE + Viton gaskets
Connection 3/8" hose barb x 1
Safety Dry-run, over-temp shut-off, built-in circuit breakers
Unit Dimensions (WxDxH) 49 x 23.5 x 82.5"
Shipping Dimensions (WxDxH) 41 x 24 x 48" (evaporator), 34 x 29 x 33" (glassware)
Shipping Weight 238 Lb (evaporator), 130 Lb (glassware)
Electrical Requirements 220V 50/60Hz single phase, 20A, 4300 watt (rotation motor: 300 watts)
Compliance UL/CSA
Package Includes
Description Quantity
Ai SolventVap 5.3-gallon rotary evaporator and water bath 1 Each
Dual main condenser with insulation sleeves Single auxiliary condenser with insulation sleeves 2 Sets
20L rotating evaporating flask Dual 10L receiving flask 2 Sets
Three-way vapor buffering flask and vapor filtering bottle 1 Set
Glass vapor duct with seal (pre-installed) 1 Each
PTFE vacuum sealing kit (pre-installed) 2 Each
Glass vapor duct with seal (pre-installed) 1 Each
Receiving flask glass vacuum port with PTFE open/close valve 2 Each
Receiving flask glass vacuum port with PTFE open/close valve, glass 2 Each
Glass material feeding port with PTFE open/close valve and PTFE extension feeding tube 1 Each
Stainless steel pole and mechanical vacuum gauge 2 Each
Flask/condenser support x 2, bracket x 1 3 Each
Flask quick clamp & PTFE centering rings 7 Sets
GL18 connector 5 Sets
Evaporating flask cap spanner, allen key & screws 1 Set
Ai 20L stainless steel flask carrier / stand 1 Each
Ai plexiglass bath cover for SolventVap 20L 1 Each
NEMA L6-30 30A 250V power plug (installed) 1 Each
