|SKU||Description||Quantity||Price||Add to Cart|

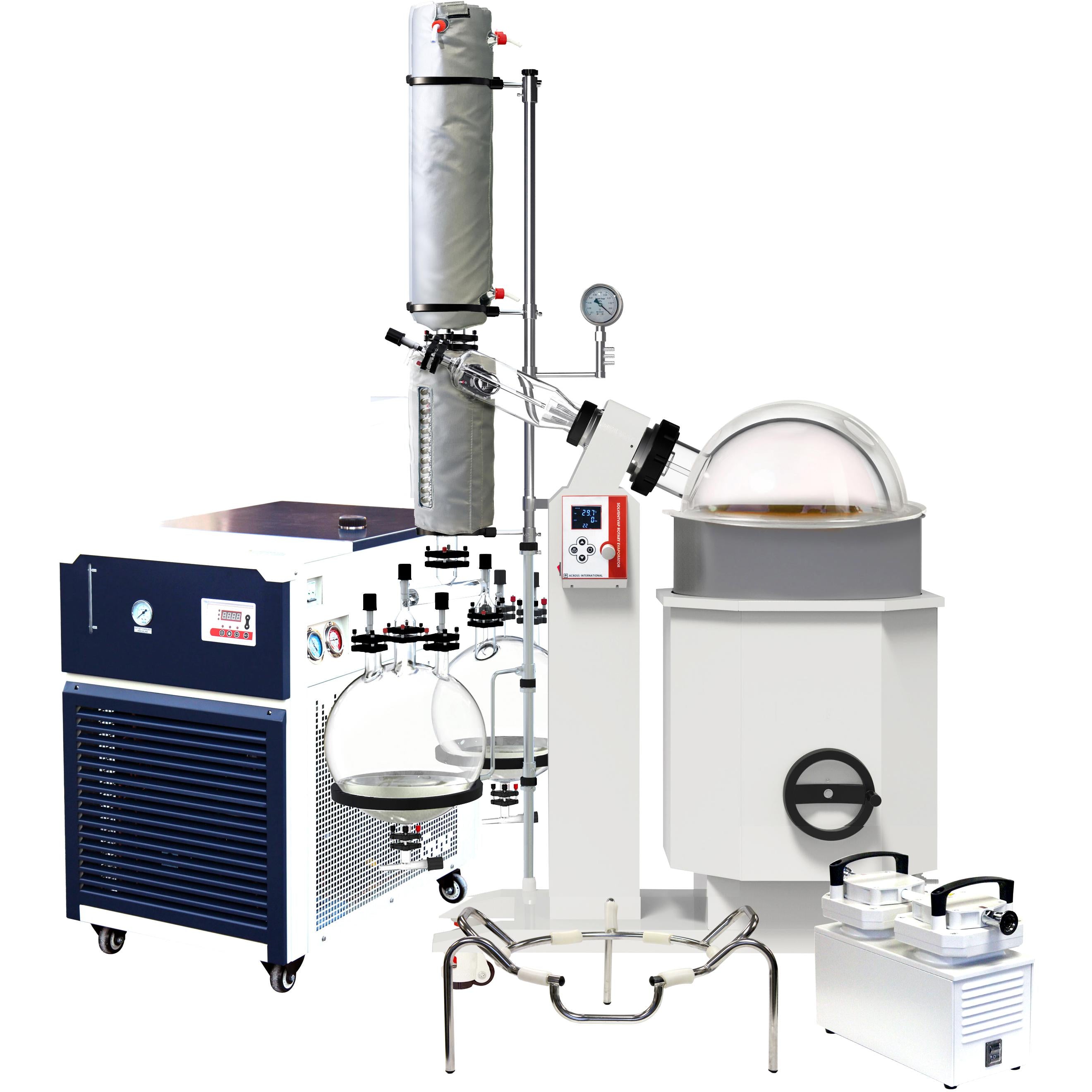

|SE130-C30-UDP6||Ai SolventVap TurnKey 50L Rotary Evaporator with Ai Chiller and ULVAC Pump, UL/CSA Certified||1 Kit||
Ai SolventVap 13-gallon/50L (evaporating flask capacity) series rotary evaporators come with vertical glassware and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.
Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 180 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.
Digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.
Standard Glassware Set includes 13.2 gallon (50 liters) round-bottomed evaporating flask, 5.28 gallon (20 liters) round-bottomed receiving flask, and vertical condenser. Rotary evaporators with vertical glass condenser are great for distillation of solvents with higher boiling points.
- UL 61010-1 and CSA C22.2 certified, standard
- Dual receiving flasks
- Stainless steel 50L evaporating flask carrier with silicone cushions (a $399 value), custom made for Ai 50L SolventVap series rotary evaporators. This carrier can be placed on top of our 50L SolventVap's water bath for easy loading and unloading. It can also be used as a flask stand.
- Condenser insulation protects your glassware and increases cooling efficiency (included with rotovap purchase)
- Swivel casters can be adjusted for rotovap to stand securely on uneven floor.
- Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.
- Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
- Downward-condensing vacuum connection design ensures safe vacuum operation.
- Motorized water bath lifting for precise control.
- Additional manual water bath lift provides you peace of mind in case of power failure.
- Easy, straight-forward visual operation with digital speed and temperature display.
- PID temperature controller ensures accurate temperature control is maintained.
- One year warranty on rotary evaporator (doesn't include glassware or sealing gaskets).
Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
|Electrical requirements||220V 50/60Hz single phase, 29A, 6400 watts (rotation speed: 400 watts)|
|Glass material||High borosilicate glass 3.3|
|Evaporating flask capacity||13.2 gallon (50 liters or 1.8 cu ft)|
|Evaporating flask max load||Not to exceed 60% of the flask's capacity|
|Evaporating flask sealing flange||4.9" diameter|
|Evaporating flask rotation speed||10 to 110 rpm|
|Evaporating flask evaporating speed||2 gallon/hour (water), 4 gallon/hour (alcohol)|
|Receiving flask capacity||20 Liters (5.28 gallon or 0.7 cu ft) x 2|
|Condenser glassware||Main + auxiliary triple-circulating cold traps, vertical|
|Condenser chilling fludi connection||3/8" hose barb x 4 (2 on main + 2 on auxiliary)|
|Condensing surface, main condenser||11,500 cm2 or 12.4 sq ft|
|Condensing surface, auxiliary condenser||4,000 cm2 or 4.3 sq ft|
|Working environment||5 to 95°F|
|Water bath temperature range||ambient to 99°C (210°F)|
|Water bath temperature controller||digital|
|Water bath dimensions||22.1" diameter x 12.2" depth|
|Water bath material||stainless steel|
|Water bath media||distilled water only|
|Water bath max water level||not to exceed 1" from the top rim of the bath|
|Water bath number of heaters||three|
|Water bath drain port||one|
|Water bath lifting||Motorized + manual|
|Water bath maximum lifting distance||9 inches|
|Vacuum level||< 3 torrs|
|Vacuum sealing||PTFE + Viton gaskets|
|Vacuum connection||3/8" hose barb x 1|
|Safety||Dry-run, over-temp shut-off, built-in circuit breakers|
|Unit/shipping dimensions (WxDxH)||52 x 30 x 92" (fully assembled) / 46 x 28 x 58" (Evaporator), 41 x 34 x 32" (glassware)|
|Shipping weight||525 Lbs|
|Ai 220V -30°C 40L capacity recirculating chiller||1 each|
|ULVAC 110V UDP-6 6 CFM 9 Torr 2-stage diaphragm pump||1 each|

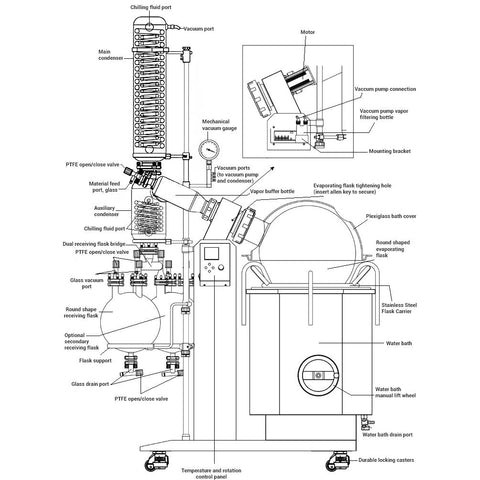

|Ai SolventVap 13-gallon rotary evaporator and water bath||1 set|
|Vertical main and auxiliary condensers, glass||2 sets|
|50L evaporating flask||1 each|
|20L dual receiving flasks with detachable drain ports||1 set|
|Three-way tee vapor buffering flask, glass||1 set|
|Glass vapor duct with seal (pre-installed)||1 set|
|PTFE vacuum sealing kit (pre-installed)||2 pcs|
|Receiving flask glass vacuum port with PTFE open/close valve, glass||2 pcs|
|Glass material feeding tube with PTFE open/close valve and PTFE extension tube||1 set|
|Stainless steel pole and mechanical vacuum gauge||2 pcs|
|Silicone vacuum tubing||10 ft|
|Rubber-wrapped support and bracket||4 pcs|
|Flask quick clamp with PTFE centering ring||7 sets|
|GL18 connector||5 sets|
|Evaporating flask cap spanner||1 pc|
|Allen key and inner hex screws||1 set|
|Ai 50L stainless steel 50L flask carrier / stand||1 pc|
|Ai plexiglass water bath cover for SolventVap 50L||1 pc|
|User's manual||1 pc|
