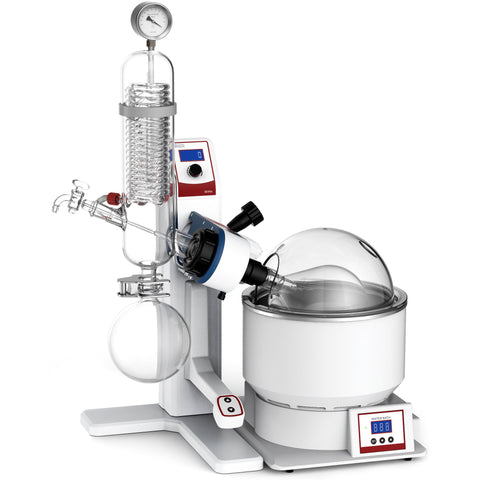

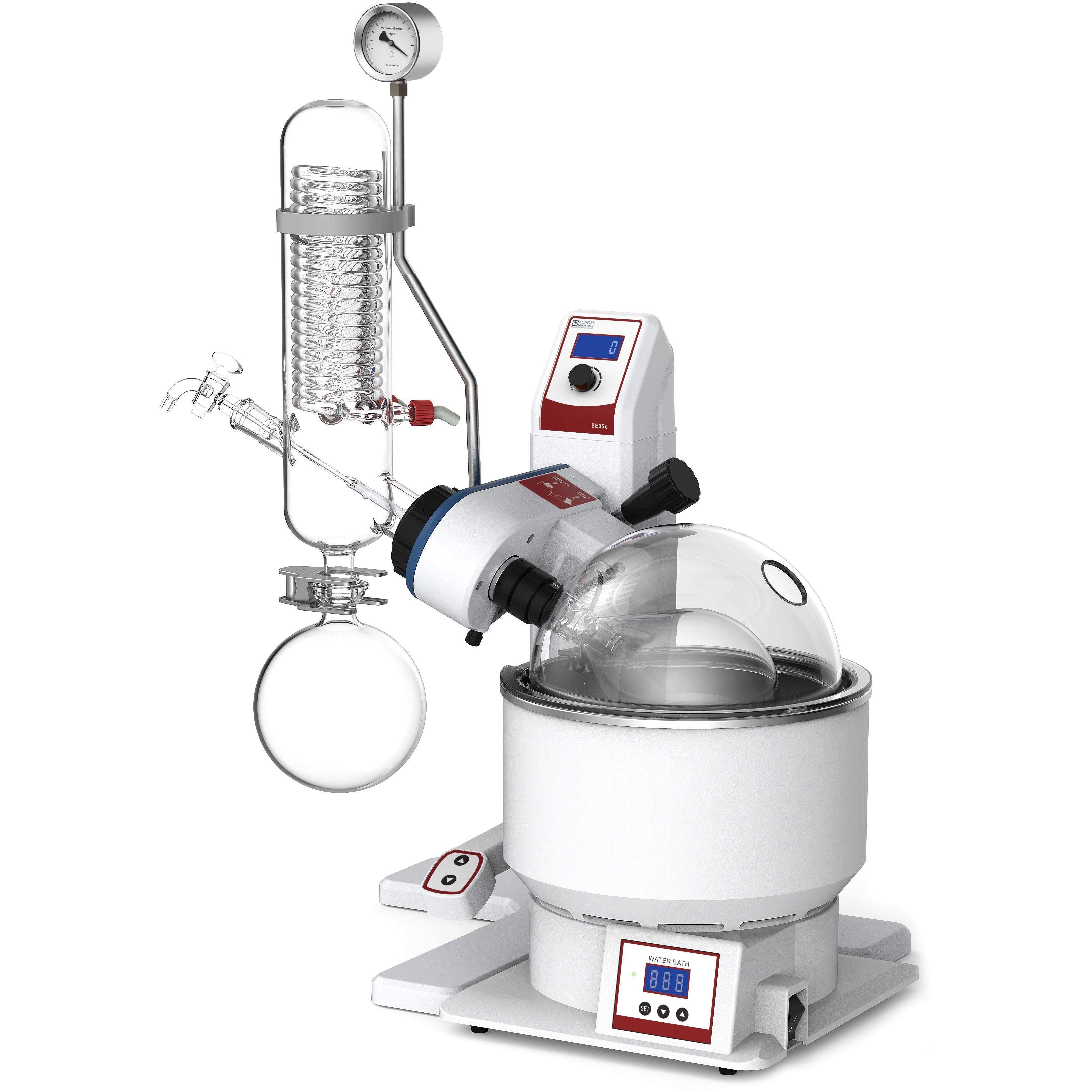

Ai SolventVap 2L Rotary Evaporator, Vertical Coiled Condenser, Motorized Lift
SKU Description Capacity Electrical Quantity Price Add to Cart
SE05X.110 Ai SolventVap Rotary Evaporator, Motorized Lift 2 L 110V, 60Hz, 1PH, 1340W, UL/CSA Certified 1 Each
  • 1
  • 2
  • 3
  • 4
  • 5


Ai SolventVap 2L (evaporating flask capacity) series rotary evaporators come with a modular heating bath, vertical glassware, and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. Thats why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.


  • Electric evaporator flask lift, nonexposed water bath heater, and plexiglass bath cover, standard Solvent-resistant PTFE and Viton gaskets ensuring long time operation.
  • Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
  • Downward-condensing vacuum connection design ensures safe vacuum operation.
  • Modular design (individual rotary and water bath modules) for easy future upgrades.

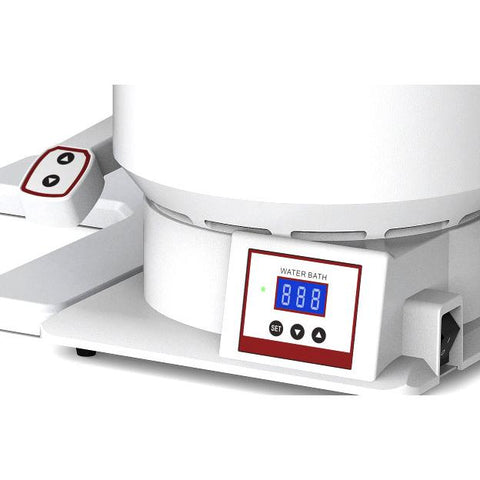

  • Easy multi-level manual lift with secure lock for the evaporating flask.

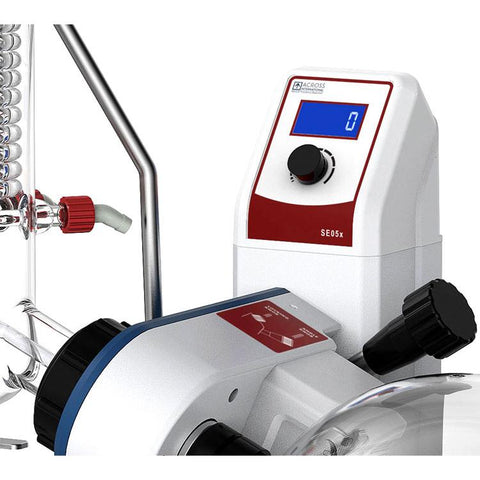

  • Easy, straight-forward visual operation with digital speed and temperature display.
  • PID temperature controller ensures accurate temperature control is maintained.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.


Glass Material High borosilicate glass 3.3
Evaporating Flask Capacity 2 Liters (0.53 gallon)
Maximum Load Not to exceed 60% of the flask's capacity
Rotation Speed 20 to 280 rpm
Evaporating Speed 20mL per minute
Lifting electric
Max Lifting Distance 4 inches (extendable to 10 inches)
Receiving Flask 1 Liter (0.26 gallon)
Condenser Glassware Vertical with dual-spiral glass tubing
Chilling Fluid Connection 3/8" hose barb x 2
Vacuum Connection 3/8" hose barb x 1
Condensing Surface 1,260 cm2 or 1.4 sq ft
Working Environment 5 to 95°F
Water Bath Temperature Range ambient to 95°C
Temperature Controller digital
Capacity 6.5 L
Dimensions 10" diameter x 5" depth x 9.75" height
Material stainless steel
Media distilled water only
Max. Water Level not to exceed 1" from the top rim of the bath
Number of Heaters one
Vacuum Ultimate Vacuum Level < 3 torrs
Sealing PTFE + Viton gaskets
Connection 3/8" hose barb x 1 (on condenser)
Safety Dry-run, over-temp shut-off, fuse protections
Unit Dimensions (WxDxH) 22 x 12.5 x 26"
Shipping Dimensions (WxDxH) 24 x 24 x 25"
Unit Weight 21 lbs
Shipping Weight 55 lbs
Electrical Requirements 110V 60Hz 1~phase, 1,340 watts (heater: 1,300 watts, rotation motor: 40 watts)
Warranty One year warranty on unit except glassware and all sealing gaskets. Glassware may have minute blemishes that will not affect the function.
Compliance ETL tested to UL and CSA standards

Package includes:

Package Includes
Description Quantity
Evaporator body with electric lift 1 Each
Water bath 1 Each
Vertical condenser with 2 chilling water ports and 1 vacuum port, glass 1 Each
2L pear shaped evaporating flask, glass (choose based on volume of material to load) 1 Each
0.26G/1L round shaped receiving flask, glass 1 Each
Glass vapor duct with seal 1 Set
Material feeding tube with valve, glass 1 Each
PTFE vacuum sealing kit 1 Set
Condenser cap kit 2 Each
Glass shaft cap and evaporator flask quick-release 2 Each
Condenser support and bracket 1 Each
Receiving flask ball joint clamp 1 Each
GL14 connector 3 Each
3-prong 110V US power cord for evaporator 1 Each
Mechanical vacuum gauge 1 Each
Ai plexiglass water bath cover for 2L SolventVap 1 Each
