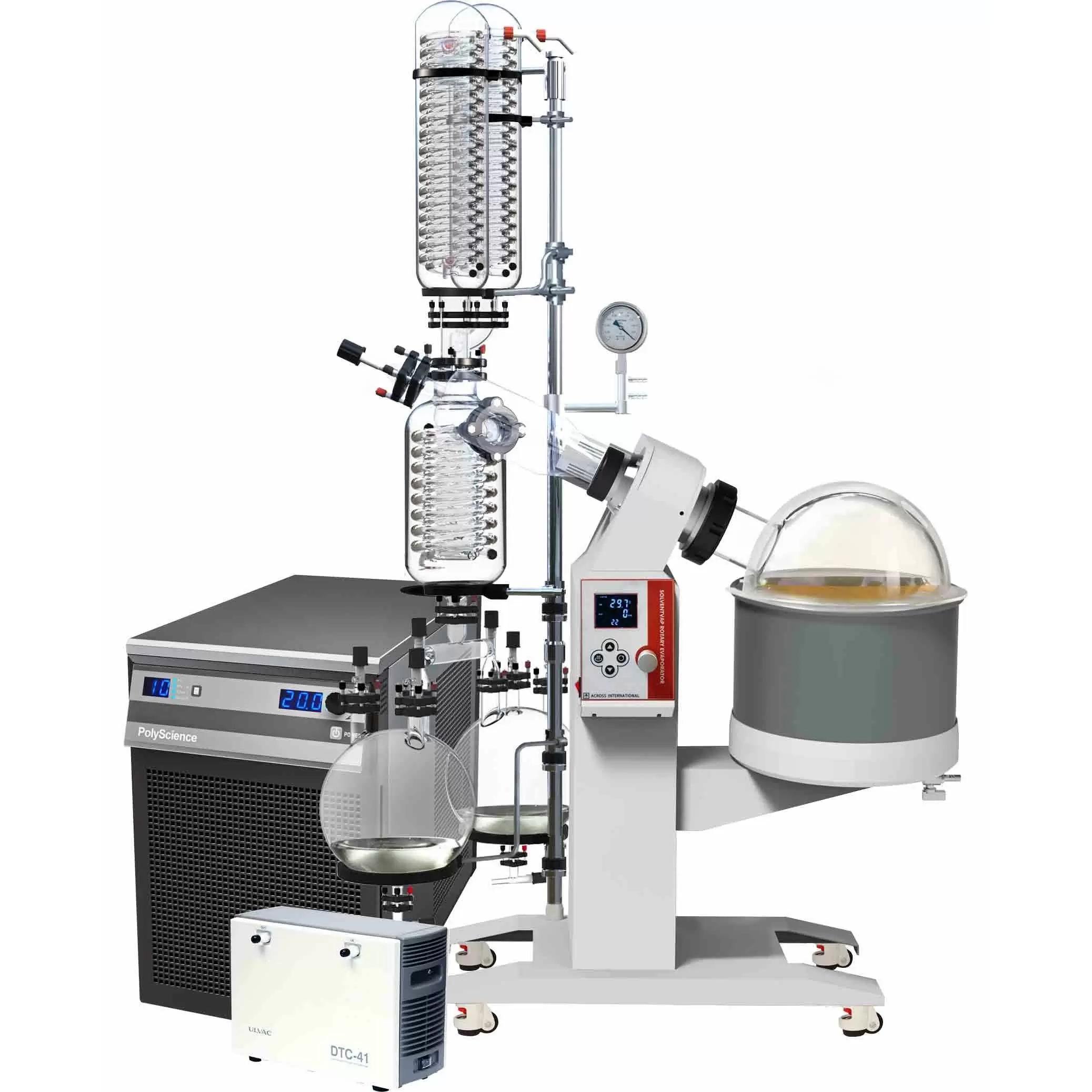

Ai SolventVap 10L Rotary Evaporator, Turnkey, with PolyScience Chiller and ULVAC Pump
SKU Description Quantity Price Add to Cart
SE26-PS6160-DTC41 Ai SolventVap TurnKey 10L Rotary Evaporator with PolyScience Chiller and ULVAC Pump, UL/CSA Certified 1 Kit
$14,199
$14,092
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

Ai SolventVap 2.6-gallon/10L (evaporating flask capacity) series rotary evaporators come with all PTFE valves for solvent-resistant operations. We also lowered the height of assembled unit, for easy installation and ease of use and storage. Also come with them are vertical glassware and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.

Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 130 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.

Digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.

Standard Glassware Set includes 2.6 gallon (10 liters) round-bottomed evaporating flask, 1.3 gallon (5 liters) round-bottomed receiving flask, and vertical condenser. Rotary evaporators with vertical glass condenser are great for distillation of solvents with higher boiling points.

Features

  • Water bath cover enhances safety by protecting evaporating flask and the material inside; it gives you uniform temperature inside evaporation flask as well as energy saving by reducing heat loss. It also creates a better lab environment by preventing heat and humidity from escaping.
  • Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.
  • Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
  • Downward-condensing vacuum connection design ensures safe vacuum operation.
  • Motorized water bath lifting for precise control.
  • Easy, straight-forward visual operation with digital speed and temperature display.
  • PID temperature controller ensures accurate temperature control is maintained.
  • One year warranty on rotary evaporator (doesn't include glassware or sealing gaskets).

Warning

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications

Specification SE26-PS6160-DTC41
Electrical requirements 220V 50/60Hz single phase, 17.3A, 3800 watt (rotation motor: 300 watts)
Glass material High borosilicate glass 3.3
Evaporating flask capacity 2.6 gallon (10 liters or 0.35 cu ft)
Evaporating flask max load Not to exceed 60% of the flask's capacity
Evaporating flask sealing flange 4.9" diameter
Evaporating flask rotation speed 10 to 130 rpm
Evaporating flask evaporating speed 0.75 gallon/hour (water), 1.5 gallon/hour (alcohol)
Receiving flask capacity 1.3 gallon (5 liters or 0.18 cu ft)
Condenser glassware Main + auxiliary triple-circulating cold traps, vertical
Condenser chilling fluid connection 3/8" hose barb x 4 (2 on main + 2 on auxiliary)
Condensing surface (main condenser) 3,900 cm2 or 4.2 sq ft
Condensing surface (auxiliary condenser) 2,530 cm2 or 2.7 sq ft
Working environment 5 to 95°F
Water bath temperature range ambient to 99°C (210°F)
Water bath temperature controller digital
Water bath dimensions 12.5" diameter x 8.7" depth x 11" height
Water bath material stainless steel
Water bath media distilled water only
Water bath max water level not to exceed 1" from the top rim of the bath
Water bath number of heaters two
Water bath drain port one
Water bath lifting Motorized
Water bath maximum lifting distance 4 inches
Vacuum level < 3 torrs
Vacuum sealing PTFE + Viton gaskets
Vacuum connection 3/8" hose barb x 1
Safety Dry-run, over-temp shut-off, built-in circuit breakers
Unit/shipping dimensions (WxDxH) 36 x 22 x 67" (WxDxH) / 39 x 22 x 44" (evaporator), 30 x 25 x 28" (glassware) (WxDxH)
Shipping weight 200 Lb (evaporator), 100 Lb (glassware)
Certification UL, CSA

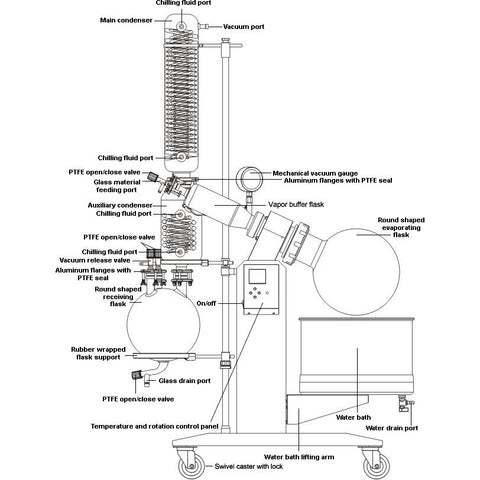

Package includes

Part description Quantity
Ai SolventVap 2.6-gallon rotary evaporator and water bath 1 each
PolyScience 220V 6160 -10°C 4.2L 1HP recirculating chiller with turbine pump 1 each
ULVAC 220V DTC-41 1.6 cfm 7.5 torr 2-head diaphragm pump and vacuum hose 1 each
Vertical main and auxiliary condensers, glass 2 pcs
2.6G/10L round shaped rotating evaporating flask, glass 1 each
5L receiving flask with detachable drain port 1 each
Three-way tee vapor buffering flask, glass 1 each
Glass vapor duct with seal (pre-installed) 1 set
PTFE vacuum sealing kit (pre-installed) 2 each
Receiving flask glass vacuum port with PTFE open/close valve 2 sets
Glass material feeding port with PTFE open/close valve 1 set
PTFE extension feeding hose 1 pcs
Stainless steel pole and mechanical vacuum gauge 2 pcs
Reinforced food grade vacuum and chilling tubing 15 ft
Rubber-wrapped condenser and receiving flask support and bracket 3 pcs
Flask quick clamp & centering ring 7 sets
GL18 x 5, 3/8" fluid port for C30 chillers x 2 2 sets
Evaporating flask cap spanner, allen key & hex screws 1 set
Ai plexiglass cover for SolventVap 10L 1 each
User's manual 1 pc
