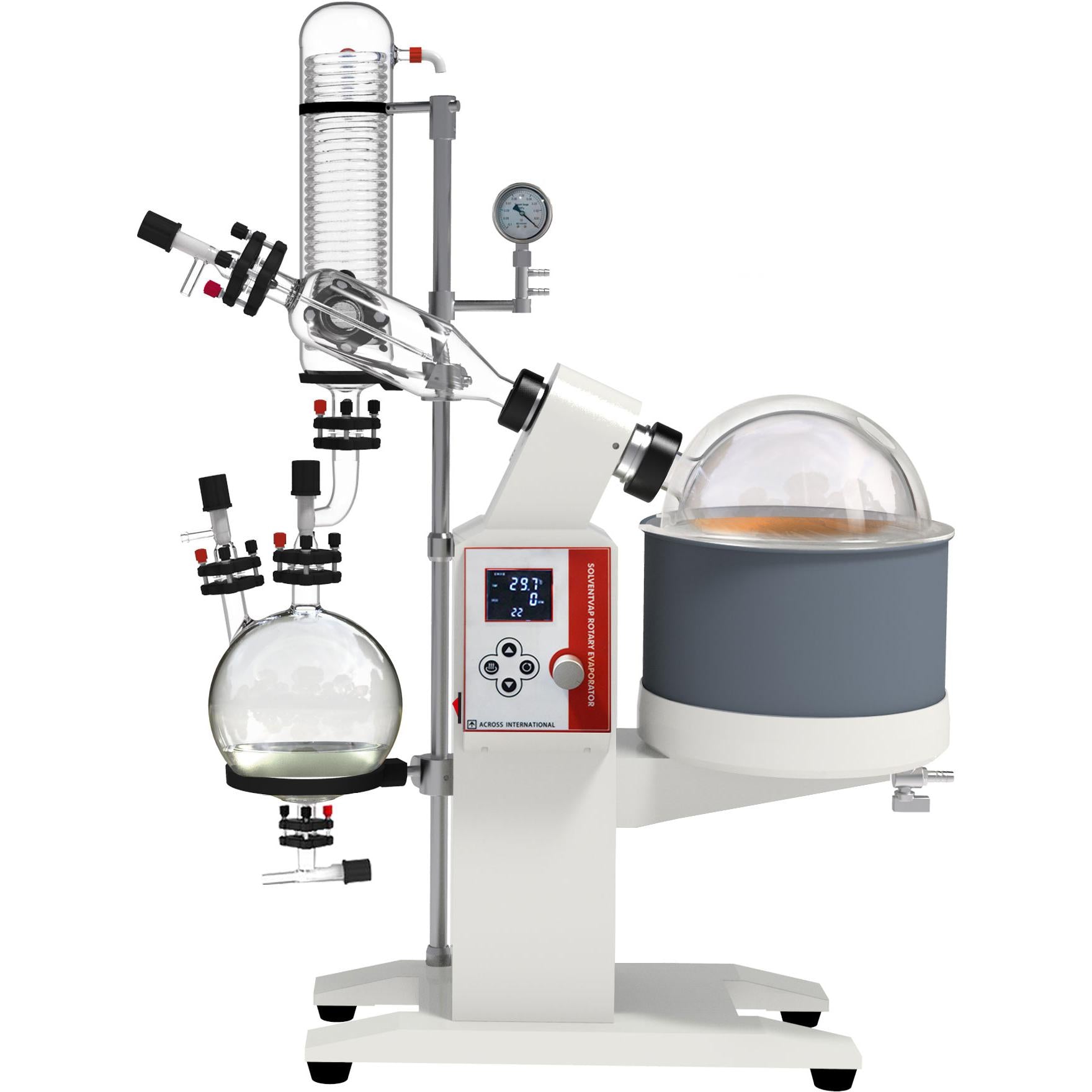

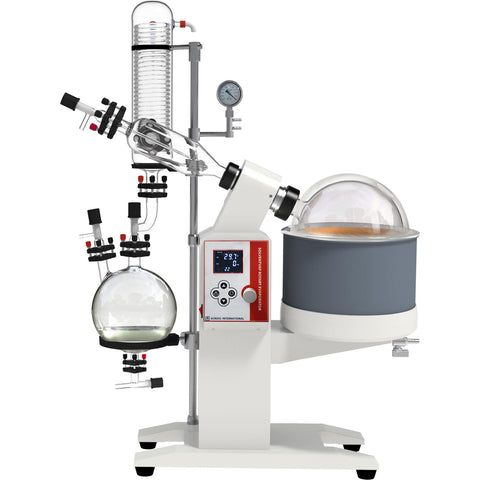

Ai SolventVap 5L Rotary Evaporator, Vertical Coiled Condenser, Motorized Lift
SKU Description Capacity Electrical Quantity Price Add to Cart
SE13.110 Ai SolventVap Rotary Evaporator, Motorized Lift 5 L 110V 60Hz single phase, 2300 watts, 21A, UL/CSA Certified 1 Each
$4,690
$4,097
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
SE13-CE.110 Ai SolventVap Rotary Evaporator, Motorized Lift 5 L 110V 60Hz single phase, 2300 watts, 21A, UL/CSA/CE Certified 1 Each
$5,690
$4,921
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
SE13.220 Ai SolventVap Rotary Evaporator, Motorized Lift 5 L 220V 50/60Hz single phase, 2300 watts, 10.5A, UL/CSA Certified 1 Each
$4,690
$4,097
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
SE13-CE.220 Ai SolventVap Rotary Evaporator, Motorized Lift 5 L 220V 50/60Hz single phase, 2300 watts, 10.5A, UL/CSA/CE Certified 1 Each
$5,690
$4,921
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

Ai SolventVap 5L series rotary evaporators are ETL tested to UL/CSA standards. This certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. All SolventVap come with all PTFE valves for solvent-resistant operations. Also come are vertical glassware and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.

Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 180 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.

Digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.

Standard Glassware Set includes 1.32 gallon (5 liters) round-bottomed evaporating flask, 0.79 gallon (3 liters) round-bottomed receiving flask, and vertical condenser. Rotary evaporators with vertical glass condenser for are great for distillation of solvents with higher boiling points.

Features

  • UL 61010-1 and CSA C22.2 certified, standard
  • Solvent-resistant PTFE and Viton gaskets ensuring long time operation.
  • Water bath cover enhances safety by protecting evaporating flask and the material inside; it gives you uniform temperature inside evaporation flask as well as energy saving by reducing heat loss. It also creates a better lab environment by preventing heat and humidity from escaping.
  • Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
  • Downward-condensing vacuum connection design ensures safe vacuum operation.
  • Motorized water bath lifting for precise control.
  • Easy, straight-forward visual operation with digital speed and temperature display.
  • PID temperature controller ensures accurate temperature control is maintained.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications

Specifications
Glass Material High borosilicate glass 3.3
Evaporating Flask Capacity 5 Liters (1.32 gallons)
Maximum Load Not to exceed 60% of the flask's capacity
Rotation Speed 10 to 140 rpm
Evaporating Speed 0.5 gallon/hour (water), 1 gallon/hour (alcohol)
Receiving Flask 3 Liter (0.79 gallon)
Condenser Glassware Dual-circulating coils, vertical
Chilling Fluid Connection 3/8" hose barb x 2
Condensing Surface 2,780 cm2 or 3 sq ft
Working Environment 5 to 95°F
Water Bath Temperature Range ambient to 99°C (210°F)
Temperature Controller digital
Dimensions 11.4" diameter x 6.7" depth x 9" height
Material stainless steel
Media distilled water only
Max. Water Level not to exceed 1" from the top rim of the bath
Number of Heaters one
Drain Port one
Lifting motorized
Maximum Lifting Distance 4 inches
Vacuum Ultimate Vacuum Level < 3 torrs
Sealing PTFE + Viton gaskets
Connection 3/8" hose barb x 1
Safety Dry-run, over-temp shut-off, fuse protections
Unit Dimensions (WxDxH) 30 x 15.7 x 42"
Shipping Dimensions (WxDxH) 29 x 17 x 35" (evaporator), 22 x 22 x 22" (glassware)
Shipping Weight 105 lbs
Electrical Requirements 110V 60Hz single phase, 2300 watts, 21A or 220V 50/60Hz single phase, 2300 watts, 10.5A
Compliance UL/CSA

Package includes:

Package Includes
Description Quantity
Ai SolventVap 5 Liter rotary evaporator and water bath 1 Each
Vapor filtering bottle 1 Each
2L pear shaped evaporating flask, glass 1 Each
Vertical condenser with 2 chilling water ports and 1 vacuum port, glass 1 Each
5L round shaped rotating evaporating flask, glass 1 Each
3L receiving flask with detachable drain port 1 Each
Three-way tee vapor buffering flask, glass 1 Each
Glass receiving flask & condenser connector elbow with PTFE open/close switch 1 Set
Receiving flask glass vacuum port with PTFE open/close valve 1 Set
Glass material feeding port with PTFE open/close valve 1 Set
Glass vapor duct with seal (pre-installed) 1 Each
PTFE vacuum sealing kit (pre-installed) 2 Each
PTFE extension feeding hose 1 Each
Stainless steel pole 1 Each
Mechanical vacuum gauge with 2 hose barb connectors 1 Each
Rubber-wrapped condenser and receiving flask support and bracket 3 Each
Flask quick clamp (4 smaller pcs for condenser, receiving flask and feeder, 1 larger pc for 3-way flask) & o-ring 6 Sets
GL14 connector 3 Each
Allen key and backup inner hex screws 4 Pieces
NEMA L5-30 30A 125V power plug Installed on 110V unit
Ai plexiglass water bath cover for SolventVap 5L 1 Each
