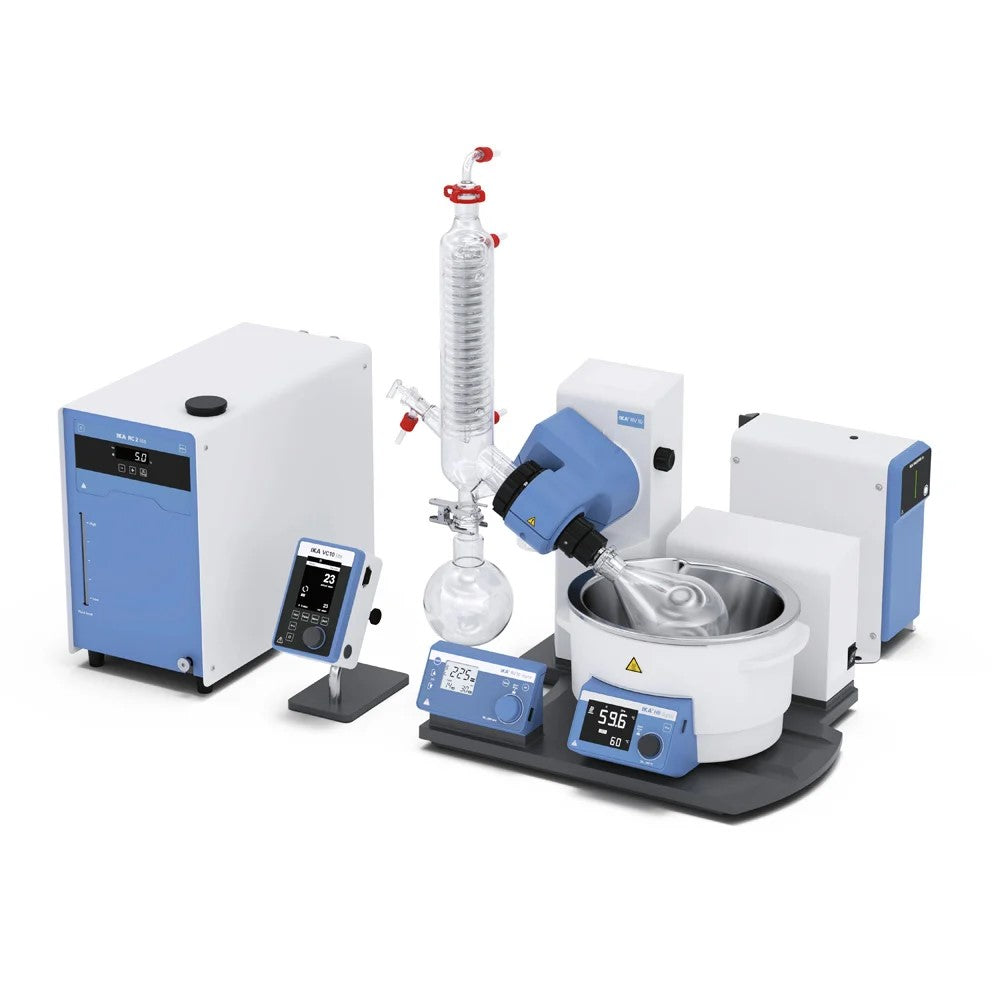

IKA RV 10 digital, Complete Solution Rotary Evaporators
| Image | SKU | Description | Capacity | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|---|
|
0010014396 | IKA RV 10 digital V Starter Solution, Rotary evaporator complete solution | 1 L | 220 - 240 V, 50/60 Hz | 1 Kit | $12,098 | |
|
0010012821 | IKA RV 10 digital pro V-C Complete, Rotary evaporator complete solution (Coated Glassware) | 1 L | 115 V, 50/60Hz | 1 Kit | $14,630 |
Description
RV 10 digital V Starter Solution / RV 10 digital pro V-C Complete
The RV 10 digital V Starter Solution and RV 10 digital pro V-C Complete are complete packages for your rotary evaporator setup. Both packages include the HB digital heating bath with a capacity of 4 liters and a heating temperature range of RT to 180 °C, a highly efficient vertical glass condenser set with 1L receiver and evaporator flask, a vacuum pump with VC 10 lite vacuum controller, and the RC 2 lite recirculating chiller. All components and connections required for operation are included.
RV 10 digital rotary evaporator
The RV 10 digital is a robust and reliable lab companion. Its optimized bath volume allows for fast heat-up times. The condenser unit has specially designed glass tubes that utilize the 1500 cm² surface extremely efficiently, delivering reliable and reproducible process results that are usually reserved for more costly systems. Additional features such as smooth start, left-right interval and timer function capability support the user in their daily lab work.
The RV 10 digital also incorporates sophisticated safety features. The motorized lift has an automated lift-out function in case of power outage to prevent superheating of the solvent. Safety temperature circuits can be set individually, and dry-run protection, an adjustable lower end stop and a lock function of the bath setting complete the line of safety features. The RS 232 interface allows for remote control via the software labworldsoft®, and the heating bath is controlled from the main unit via the IR interface.
Vacuum pump options
The RV 10 digital V Starter Solution includes the VACSTAR lite vacuum pump, which is extremely space-saving and achieves a minimum vacuum of 9 mbar. The RV 10 digital pro V-C Complete is instead equipped with the more advanced VACSTAR digital vacuum pump, achieving a deeper minimum vacuum of 2 mbar for more demanding applications. Both pumps are controlled by the supplied VC 10 lite vacuum controller, which enables manual setting of the vacuum, program-controlled operation, and control of the recirculating chiller.
Glassware options
The RV 10 digital V Starter Solution includes the RV 10.900 standard vertical glassware set, while the RV 10 digital pro V-C Complete is supplied with the RV 10.910 coated vertical glassware set, offering enhanced chemical resistance for more demanding distillation processes.
RC 2 lite recirculating chiller
Both packages include the compact RC 2 lite recirculating chiller, which offers a strong 400 watt cooling capacity and a powerful pressure and suction pump (0.35 bar), designed for simple cooling tasks down to -10 °C. The easily accessible and easy-to-clean mesh filter made of stainless steel ensures a consistently high cooling performance for years. Thanks to the natural refrigerant R290, the RC 2 lite is particularly environmentally friendly and well prepared for the future.
Warranty
By registering your devices online at www.ika.com/register, you can extend the warranty of your products free of charge. For rotary evaporators and heating baths, the standard warranty is two years, plus three additional years after registration (2+3). For peripheral devices included in the package such as the vacuum pump and chiller, the additional warranty is one year (2+1).
Scope of delivery — RV 10 digital V Starter Solution
The RV 10 digital V Starter Solution includes all components and connections required for immediate operation. The package contains the following items:
- RV 10 digital FLEX
- RV 10.900 Glassware vertical
- VC 10 lite
- VACSTAR lite
- VC 10.400 Stand
- RC 2 lite
- RV 10.5005 Set of hoses
- PC 1.3 Cable
Scope of delivery — RV 10 digital pro V-C Complete
The RV 10 digital pro V-C Complete includes all components and connections required for immediate operation. The package contains the following items:
- RV 10 digital FLEX
- RV 10.910 Glassware vertical coated
- VC 10 lite
- VACSTAR digital
- VC 10.400 Stand
- RC 2 lite
- RV 10.5005 Set of hoses
- PC 1.3 Cable
Technical Data
| Standard | Coated | |
|---|---|---|
| Type of cooling | Vertical | |
| Cooling surface | 1500 cm² | |
| Motor principle | DC | |
| Speed range | 5 – 280 rpm | |
| Reversible direction of rotation | Yes | |
| Lift | Motor | |
| Stroke | 140 mm | |
| Heating temperature range | Room temp. – 180 °C | |
| Heat output | 1300 W | |
| Set temperature resolution | 1 K | |
| Filling volume max. | 3 l | |
| Timer | Yes | |
| Vacuum pump | VACSTAR lite | — |
| Pump rate max. 50/60 Hz (m³/h) | 1.0 m³/h | — |
| Pump rate max. 50/60 Hz (l/min) | 16.7 l/min | — |
| Final pressure | 9 mbar | — |
| Dimensions (W x H x D) | 500 x 430 x 440 mm | |
| Weight | 20 kg | |
| Permissible ambient temperature | 5 – 40 °C | |
| Permissible relative humidity | 80 % | |
| Protection class according to DIN EN 60529 | IP 20 | |
| RS 232 interface | Yes | |
| Voltage | 220 – 240 V | 115 V |
| Frequency | 50/60 Hz | |
| Power input | 1400 W | |
Documentation
| Data Sheet RV 10 digital V Starter Solution |
| Data Sheet RV 10 digital pro V-C Complete |
| Manual RV 10 digital |
