Julabo CORIO™ CP Heating Circulators, 20 to 200°C
Image SKU Description Filling Volume Temperature Range Temperature Stability Electrical Quantity Price Add to Cart

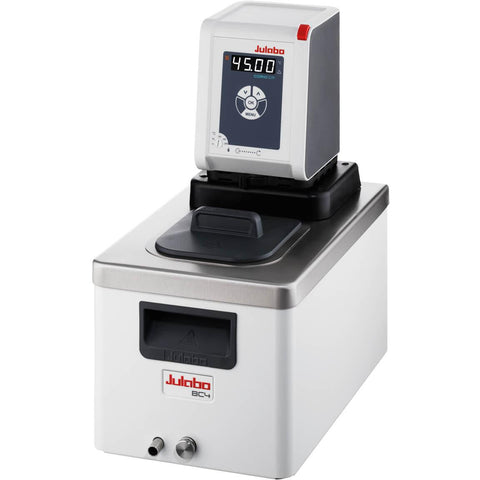

products/corio_cp_bc4_1_cc8e577b-5fcc-47ef-bdef-5d4868b70bfd.jpg
9013504.22 CORIO CP-BC4 Heating Circulator 3 to 4.5 L +20 to 200 °C ±0.02 °C 100 - 115V / 50-60Hz 1 Each
$4,097
$3,550
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cp_bc4_1_0dd714f7-768b-4db5-8240-af38bd5c5b54.jpg
9013504.33 CORIO CP-BC4 Heating Circulator 3 to 4.5 L +20 to 200 °C ±0.02 °C 200 - 230V / 50-60Hz 1 Each
$4,097
$3,550
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cp_bc6_1_d39a7c97-99e9-4536-ad9c-cb2d85ea1597.jpg
9013506.22 CORIO CP-BC6 Heating Circulator 4.5 to 6 L +20 to 200 °C ±0.02 °C 100 - 115V / 50-60Hz 1 Each
$4,415
$3,826
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cp_bc6_1_7ddfb36a-4389-4d24-b2ea-5eaa1a1b4738.jpg
9013506.33 CORIO CP-BC6 Heating Circulator 4.5 to 6 L +20 to 200 °C ±0.02 °C 200 - 230V / 50-60Hz 1 Each
$4,415
$3,826
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

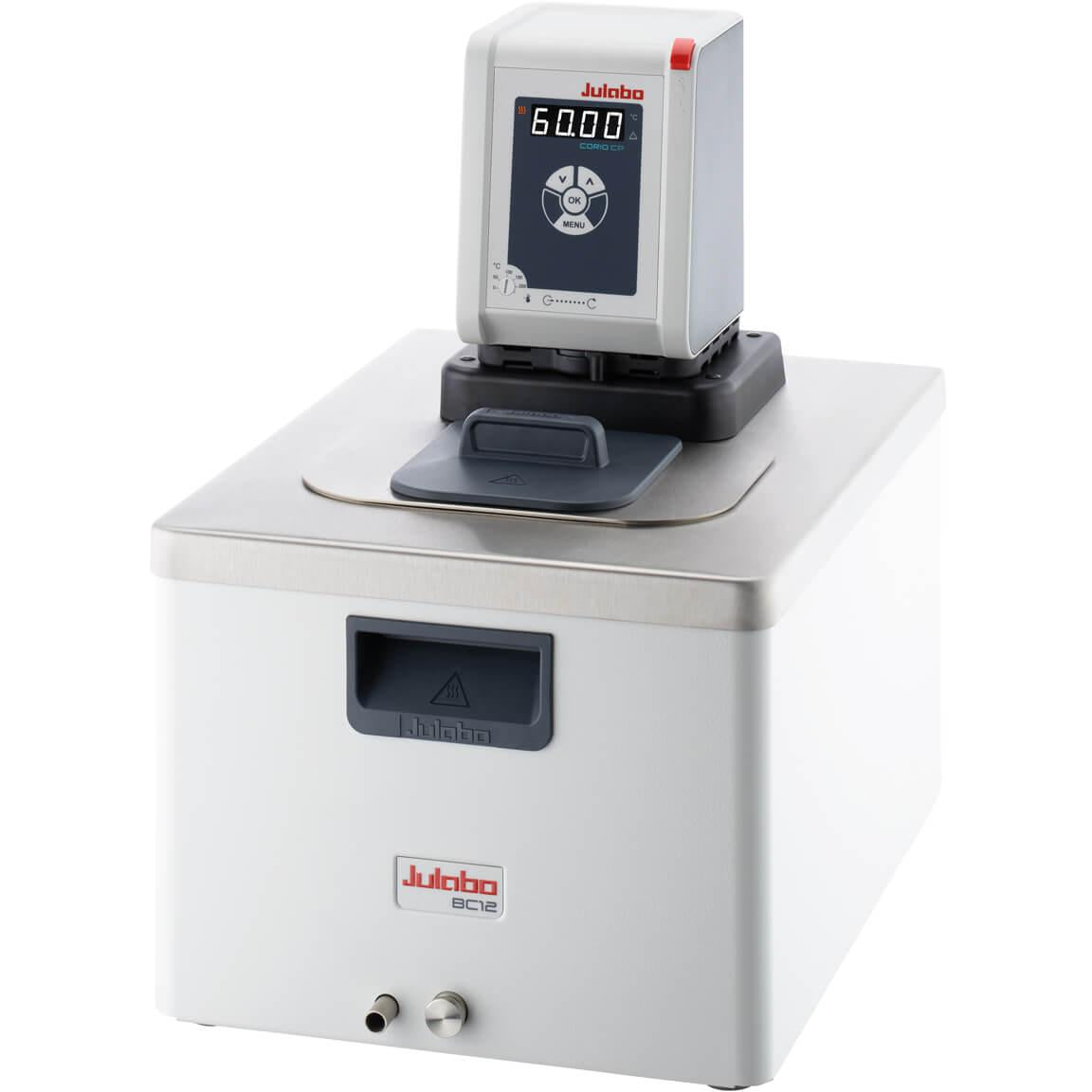

products/corio_cp_bc12_1_6ff0146d-de2e-40fd-bb0b-257588ded8fd.jpg
9013512.22 CORIO CP-BC12 Heating Circulator 8.5 to 12 L +20 to 200 °C ±0.02 °C 100 - 115V / 50 - 60Hz 1 Each
$4,793
$4,153
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cp_bc12_1_9974609e-eeb5-4ee1-94bb-748e37537941.jpg
9013512.33 CORIO CP-BC12 Heating Circulator 8.5 to 12 L +20 to 200 °C ±0.02 °C 200 - 230V / 50 - 60Hz 1 Each
$4,793
$4,153
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cp_bc26_1.jpg
9013526.22 CORIO CP-BC26 Heating Circulator 19 to 26 L +20 to 200 °C ±0.02 °C 100 -115V / 50-60Hz 1 Each
$5,320
$4,610
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...
products/corio_cp_bc26_1_7e48f184-fec7-4fe4-b07c-a05af00aa955.jpg
9013526.33 CORIO CP-BC26 Heating Circulator 19 to 26 L +20 to 200 °C ±0.02 °C 200 - 230V / 50-60Hz 1 Each
$5,320
$4,610
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

CORIO CP Heating Circulator for internal and external temperature applications with stainless steel baths and working temperatures up to +200°C.

CORIO Heating Circulators feature professional technology for demanding applications. These units facilitate internal temperature control in the bath tank or control of externally connected applications.

Your advantages

  • Bright, white, easy-to-read display
  • Very quiet
  • Easy change-over from internal to external circulation and vice versa
  • Strong pump capacity, infinitely adjustable
  • USB connection
  • R232 interface
  • High-quality bath tanks made of stainless steel with bath lid and drain tap
  • Integrated pump connection M16×1
  • Early warning system for low liquid level
  • Integrated cooling coil for counter-cooling

Specifications

SKU 9013504 9013506 9013512 9013526
Model Series CORIO
Category Heating Circulators
Working Temperature Range +20 to +200°C
Temperature stability ±0.02°C
Setting / Display Resolution 0.01°C / 0.1°C
Temperature Display LED
Heating Capacity 1kW
Pump Capacity Flow Rate 8 to 27 l/min
Pump Capacity Flow Pressure 1.5 to 10.2 psi
Bath Opening / Bath Depth 5.1" W x 5.9" L / 5.9" D 5.1" W x 5.9" L / 7.9" D 8.7" W x 5.9" L / 7.9" D 10.2" W x 13.8" L / 7.9" D
Pump Connections M16x1
Barbed Fittings Diameter 8 / 12 mm
Filling Volume 3 to 4.5 Liters 4.5 to 6 Liters 8.5 to 12 Liters 19 to 26 Liters
Ambient Temperature 5 to 40°C
Included with each Unit 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Cooling Coil Integrated
Bath Tank Stainless Steel
Bath Cover Integrated
Dimensions W x L x H 9.1" x 16.1" x 16.5" 9.4" x 17.3" x 18.5" 13" x 19.3" x 18.5" 15.4" x 24.4" x 18.9"
Weight 18.7 lbs 22 lbs 29.9 lbs 41.9 lbs
