Julabo MAGIO™ MX-BC Heating Circulators, 20 to 300°C
Image SKU Description Filling Volume Temperature Range Temperature Stability Electrical Quantity Price Add to Cart

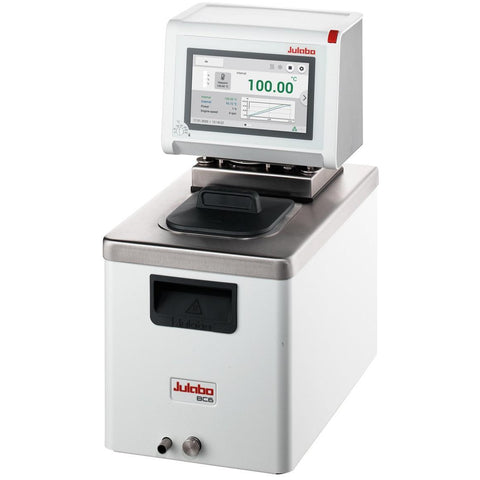

files/magio_mx_bc6_1_1_1d29ba2e-cba2-472c-84db-8c36be53d26b.jpg
9033506.33 MAGIO MX-BC6 Heating Circulator 4.5 to 6 L 20 to 300 °C ±0.01 °C 200-230V/50-60Hz 1 Each
$8,641.99
$7,489
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

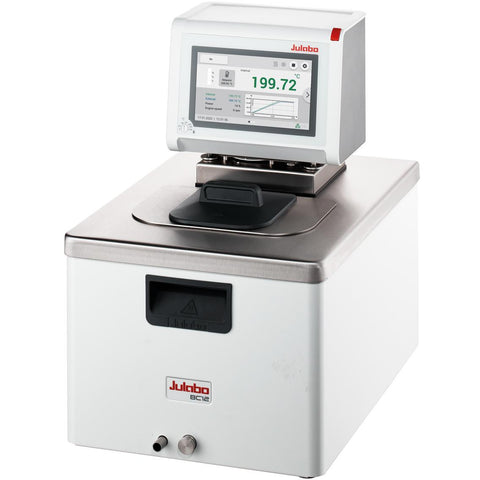

files/magio_mx_bc12_1_2144d5d6-00dd-4afe-b1b0-40da603b514e.jpg
9033512.33 MAGIO MX-BC12 Heating Circulator 8.5 to 12 L 20 to 300 °C ±0.01 °C 200-230V/50-60Hz 1 Each
$9,252
$8,018
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

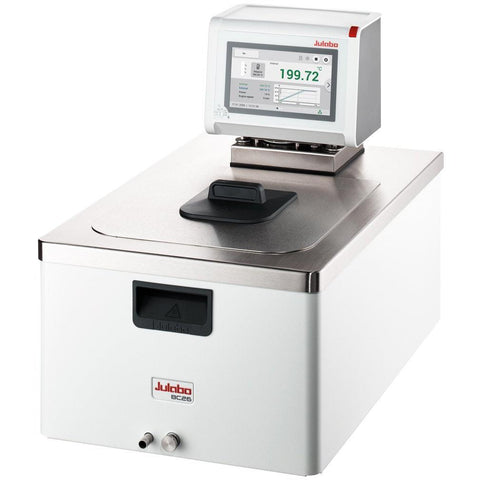

files/magio_mx_bc26_1_b81beeff-1197-422a-884f-7f666050d798.jpg
9033526.33 MAGIO MX-BC26 Heating Circulator 19 to 26 L 20 to 300 °C ±0.01 °C 200-230V/50-60Hz 1 Each
$9,738
$8,439
  • 1
  • 2
  • 3
  • 4
  • 5
Custom...

Description

MAGIO MX-BC Series heating circulators with 6L, 12L, or 26L bath tank and lid with 3 kW heating power to +300 °C. Large, color touchscreen UI with built-in help functions. For internal and external temperature applications. Includes Intelligent Cascade Control, self optimizing for optimum results with settings for band limit, limit setting, co-speed factor and control dynamics. An variable speed pressure / suction pump provides strong circulation for internal or external applications. A built-in cooling coil enables counter cooling with tap water.

Barbed fittings for 8 and 12 mm ID tubing are included (pump connections M16x1 male). Includes Pt100 connection for external monitoring and control, electronically adjustable pressure/suction pump, RS232/RS285, USB and Ethernet ports with optional slot for analog communication (requires module 9900100). Modbus TCP/IP incorporated. Stakei port for external accessory control (solenoid valve, etc.). Class III (FL) according to DIN 12876-1.

Included with each unit: 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).

Key Benefits

  • TFT Color Touchscreen
  • Multilingual
  • Input for setpoints, warning/safety values and menu functions
  • ICC (Intelligent Cascade Control), self-optimizing temperature control
  • ATC3 3-Point-Calibration
  • Pt100 External sensor connection for measurement and control
  • Continuously variable pressure/suction pump
  • Early warning system for low liquid level (DBGM 203 06 059.8)
  • Adjustable high temperature cut-out, visible via display
  • RS232/RS485, USB and Ethernet interface for online communication
  • Integrated programmer
  • Built-in cooling coil and drain tap

Specifications

Part # 9033506 9033512 9033526
Model Series MAGIO MX-BC
Category Heating Circulators
Working Temperature Range +20 to 300°C
Temperature Stability ±0.01
Setting / Display Resolution 0.01°C / 0.1°C
Temperature Display 7" TFT Touchscreen
Heating Capacity 3kW
Pump Capacity Flow Rate 16 to 31 L/min
Pump Capacity Flow Pressure 3.5 to 13.3 psi
Bath Opening / Bath Depth 5.1" W x 5.9" L / 7.9" D 8.7" W x 5.9" L / 7.9" D 10.2" W x 13.8" L / 7.9" D
Pump Connections M16x1
Barbed Fittings Diameter 8 / 12 mm
Filling Volume 4.5 to 6 L 8.5 to 12 L 19 to 26 L
Ambient Temperature +10 to +40 °C
Dimensions W x L x H 9.4" x 17.3" x 18.5" 13" x 19.3" x 18.5" 15.4" x 24.4" x 18.9"
Weight 28.2 lbs 32.2 lbs 47.2 lbs
Included with each unit 2 barbed fittings suitable for tubing 8 and 12 mm inner dia. (pump connections M16x1 male)
Cooling Coil Integrated
Bath tank Stainless steel
Bath Cover Integrated

Documentation

Product Data Sheets
9033506 Product Data Sheet
9033512 Product Data Sheet
9033526 Product Data Sheet
Magio MX User Manual
