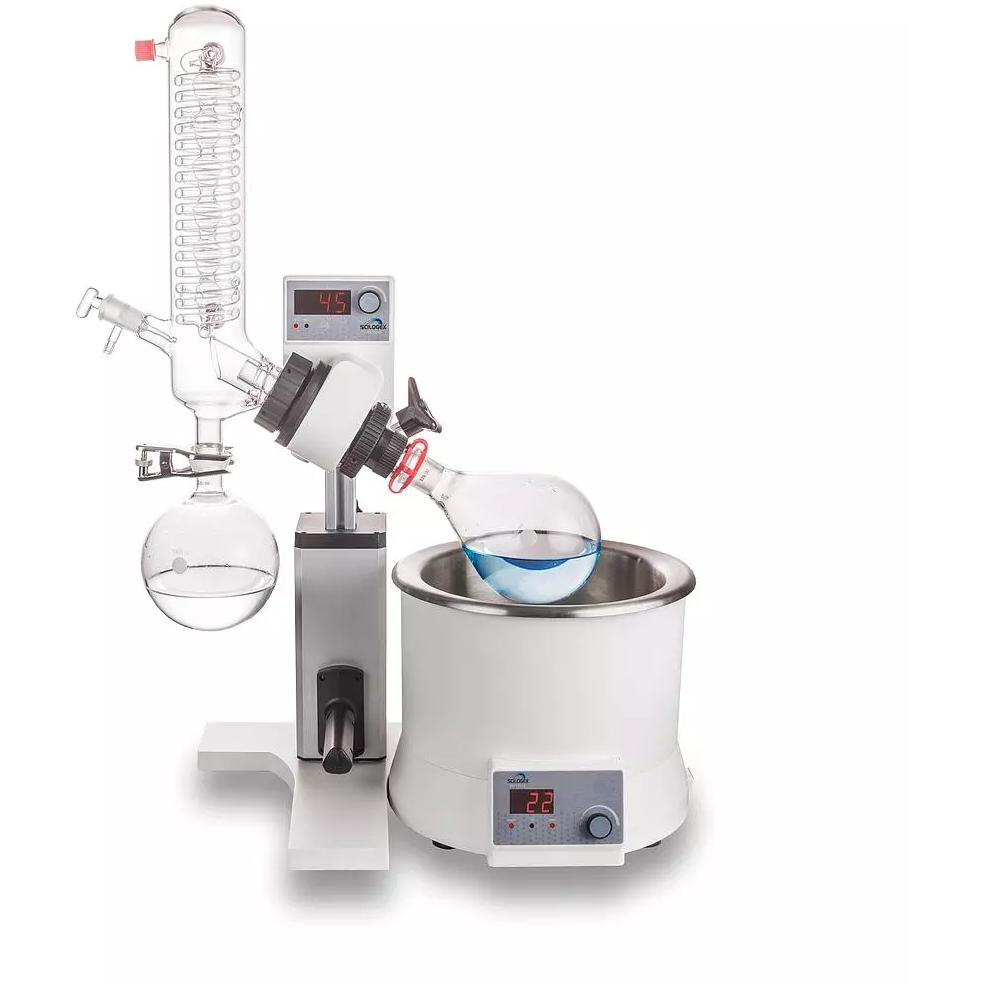

Scilogex RE100-S Rotary Evaporator, Vertical Coiled Condenser, Manual Lift
SKU Description Bath Capacity Temperature Range Rotational Speed Electrical Quantity Price Add to Cart
60301202119999 RE100-S Rotary Evaporator, vertical coiled condenser, 1000ml evaporating flask NS 24/40 & 1000ml receiving flask KS 35/20 5 L Ambient to 180 °C 20 to 200 rpm 110V, 50/60Hz 1 Each
  • 1
  • 2
  • 3
  • 4
  • 5


Our LED Digital Rotary Evaporator is an essential instrument in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. It offers an excellent distilling solution in a wide range of applications.

  • Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes
  • 5L heating bath, temperature range from room temp. to 180°C, with independent control
  • Patented condenser (cooling surface 1200cm²) with excellent cooling effect
  • Manual lift combined with auxiliary lift for precise positioning
  • Speed range from 20 to 200rpm, and interval operation in clockwise and anticlockwise directions for drying process
  • Overheating/boil dry protection
  • Timer function for precise control processing
  • Chemical-resistant PTFE seals and patented pressure springs provide excellent sealing
  • Precise temperature control and adjustable safety circuit
  • Quick release connectors for easy flask removal
  • Ejection mechanism ensures easy removal of evaporating flask
  • Patented double spring sealing ring which is made of PTFE provides excellent sealing performance
  • Remote function provides PC control and data transmission


Model RE100-S
Motor Type Brushless DC motor
Speed Range 20-200rpm
Display LED (speed, temperature, time)
Clockwise and Anti-clockwise Yes
Heating Temperature Range Room temp. to 180ºC
Control Accuracy water: +/=1C; oil: +/=3C
Heating Power 1010 W
Stroke Displacement Manual 110mm + auxiliary 100mm
Interval Time Setting Range 1~999s
Dimension [DxWxH] Main Unit: 440 x 320 x 450mm
Heating Bath: 300 x 300 x 240mm
Weight Main Unit: 7kg
Heating Bath: 3kg
Permissible Ambient Temperature 5~40C
Permissible Relative Humidity 80% RH
Protection Class IP20
USB Interface Yes
Voltage/Frequency 110V, 50/60Hz
Power 1100 W
