FREE SHIPPING

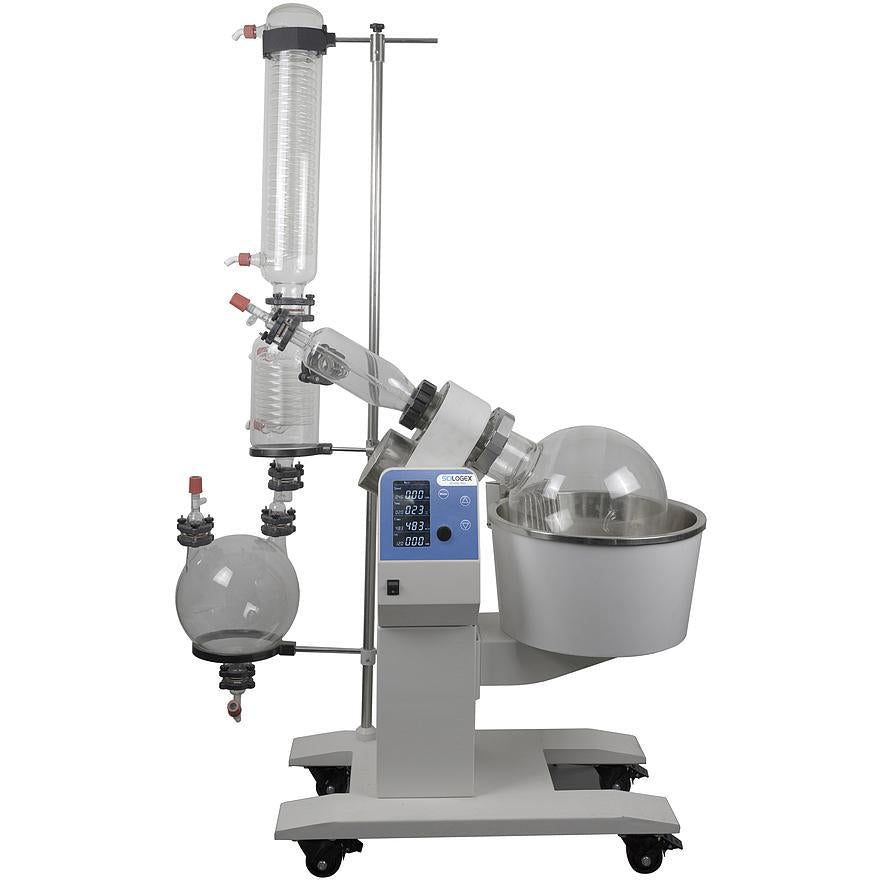

Scilogex SCI20L-Pro 20L Rotary Evaporator, Vertical Coiled Condenser, Motorized Lift
$11,000
$8,764
| SKU | Description | Capacity | Electrical | Quantity | Price | Add to Cart |
|---|---|---|---|---|---|---|
| 60301121249999 | SCI20L-Pro Rotary Evaporator, Vertical Coiled Condenser, Motorized Lift | 20 L | 220V, 4600W, 50/60Hz | 1 Each |
|
Description
The SCI20L-Pro is ideal for continuous distillation of many volatile solvents under reduced pressure. It offers an excellent distilling solution in a wide range of applications.
Features
- Large LCD digital display with heating temperature, rotation speed, clockwise, anti-clockwise and timer
- Simple automatic motorized lift (stroke 180mm), smooth and silent
- Water/oil heating bath with wide temperature range from room temperature range to max. 180°C
- Speed range from 10 to 150rpm, and interval operation in clockwise and anti-clockwise directions for drying process
- Double-layer high-efficiency condensing tube with large condensation area and strong evaporation capacity, ensuring efficient sample recovery
- Patented PTFE double sealing ring with excellent sealing performance.
- Switching valve for continuous collection without compromising the system vacuum and solvent distillation.
- Large LCD display
- Overheating protection
- Excellent chemical resistance
- 2 YEAR WARRANTY
Specifications
| SKU | 60301121249999 |
|---|---|
| Temperature Range | Ambient to 180 °C |
| Temperature Accuracy | ±1 °C (water) ±3 °C (oil) |
| Rotational Speed | 10 to 150 rpm |
| Evaporation Rate | 4.0 L/h (water vapor volume) |
| Ultimate Vacuum | Less 2.6 hpa |
| Controller | Micro processer PID control |
| Display | LCD (temperature/speed/clockwise and Anti-clockwise/time) |
| Safety Features | Motor over-current protection, Residual Current Device, lifting overload protection, Boil-dry protection, over-temperature protection |
| Evaporating Flask | 20 L |
| Receiving Flask | 10 L with drain valve |
| Condenser | Two-section vertical triple serpentine condenser, cooling surface 1.2 m2 |
| Dimensions | 116 cm D × 60 cm W × 186 cm H |
| Electrical | 220V, 4600W, 50/60Hz |
